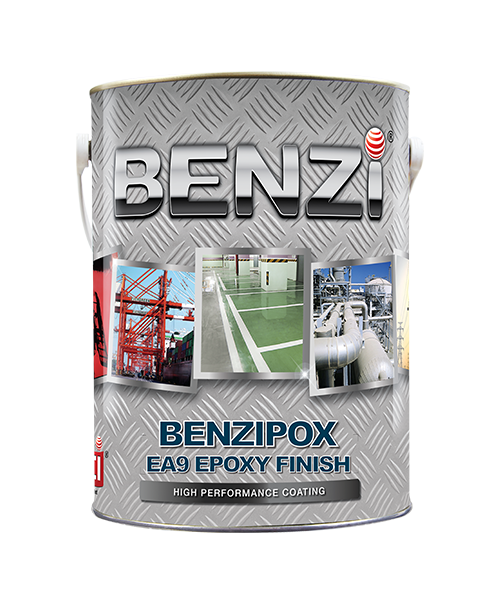

BENZIPOX EA9 Epoxy Finish

Two Pack Epoxy Mid-Sheen Finish

Share With:

Paint Calculator

BENZIPOX EA9 EPOXY FINISH is a two pack epoxy finish designed for use as an intermidiate or finishing coat for ferrous and non ferrous metal such as mild steel, aluminium, stainless steel, galvanised iron and phenolic sheeting, under immersion and non-immersion services. It has outstanding resistance to aqueous solution and a wide range of industrial chemicals. An excellent high performance and economical coating for steel tank for storage of potable water, gasoline, palm oil, vegetable and animal oils.

Painting System:
Substrate	Primer ( 1 coat )	Intermediate ( 1 coat )	Topcoat ( 1 coat )
Ferrous Metal (Internal of Steel Tank / Silo)	BENZIPOX EA9 Red Oxide Primer	BENZIPOX EA9 Epoxy Finish	BENZIPOX EA9 Epoxy Finish
Ferrous Metal	BENZIPOX EA9 Red Oxide Primer	BENZIPOX EA9 Epoxy Finish	BENZIPOX EA9 Epoxy Finish
Non-Ferrous Metal	BENZIPOX EA9 Red Oxide Primer	BENZIPOX EA9 Epoxy Finish	BENZIPOX EA9 Epoxy Finish

5 litres

Surface Preparation:

Ferrous Metal Surface
For optimum performance, mild steel surface shall be abrasively blasted in accordance to Swedish Standard Sa 2.5. If abrasive blasting is impossible, mechanical cleaning to St 3 is essential. If oxidation occurred on the blasted steel before application of paint, it is necessary to reblast the steel. The surface must be dry and free from any abrasive residues, dirt, grease and other contaminants prior to painting.

Non-Ferrous Metal Surface
For new surface, thorough solvent degreasing to SSPC-SP1 is necessary. For old surface, it must be abraded to remove corrosion deposits. All surfaces must be dry and clean prior to painting.

Mixing Ratio (By Volume)	: 4 : 1 (Base : Hardener)
Color	: Assorted colors, refer BENZi High Performance Coating color card
Film Finish	: Mid Sheen
Touch Dry	: 2 - 3 hours (depends on temperature and humidity)
Recoating Interval	: Minimum 20 hours
Solid Content	: 65% (by weight); 55% (by volume)
Dry Film Thickness	: 80 - 150 microns / coat
Theoretical Coverage	: 7 m2 / litre / coat (DFT of 80 microns); 4 m2 / litre / coat (DFT of 150 microns)
No. of Coat	: Minimum 2 coats
Application	: Brush, roller, air spray or airless spray
Thinning	: Use Thinner for dilution, dilute up to 5 - 10% if necessary
Cleaning Up	: Clean all paint equipment with Thinner immediately after use

Safety, Health & Environment

FLAMMABLE. During painting, make sure no source of ignition at surrounding and no smoking. When not in use, store paint in cool and shaded place and do not directly expose to sunlight. Allow proper ventilation and wear mask during painting. Do not breathe vapour or spray. Keep doors and windows open during application and drying. It is advisable to wear eye protector while applying. In case of contact with eyes, rinse immediately with plenty of water and seek medical treatment. To remove splashes of paint from skin, use suitable cleanser or soap and water. Do not dispose paint into drains or watercourses. Refer to MCI Paint Technical Data Sheet (TDS) for further details.

Materials Safety Data Sheet (MSDS) is available upon request.
